１、適用于食品、醫藥、化工、化妝品行業中顆粒物品的計量包裝。

The machine is suitable for  the food, medicine, chemical industry, cosmetics industry of particles of measurement packing.

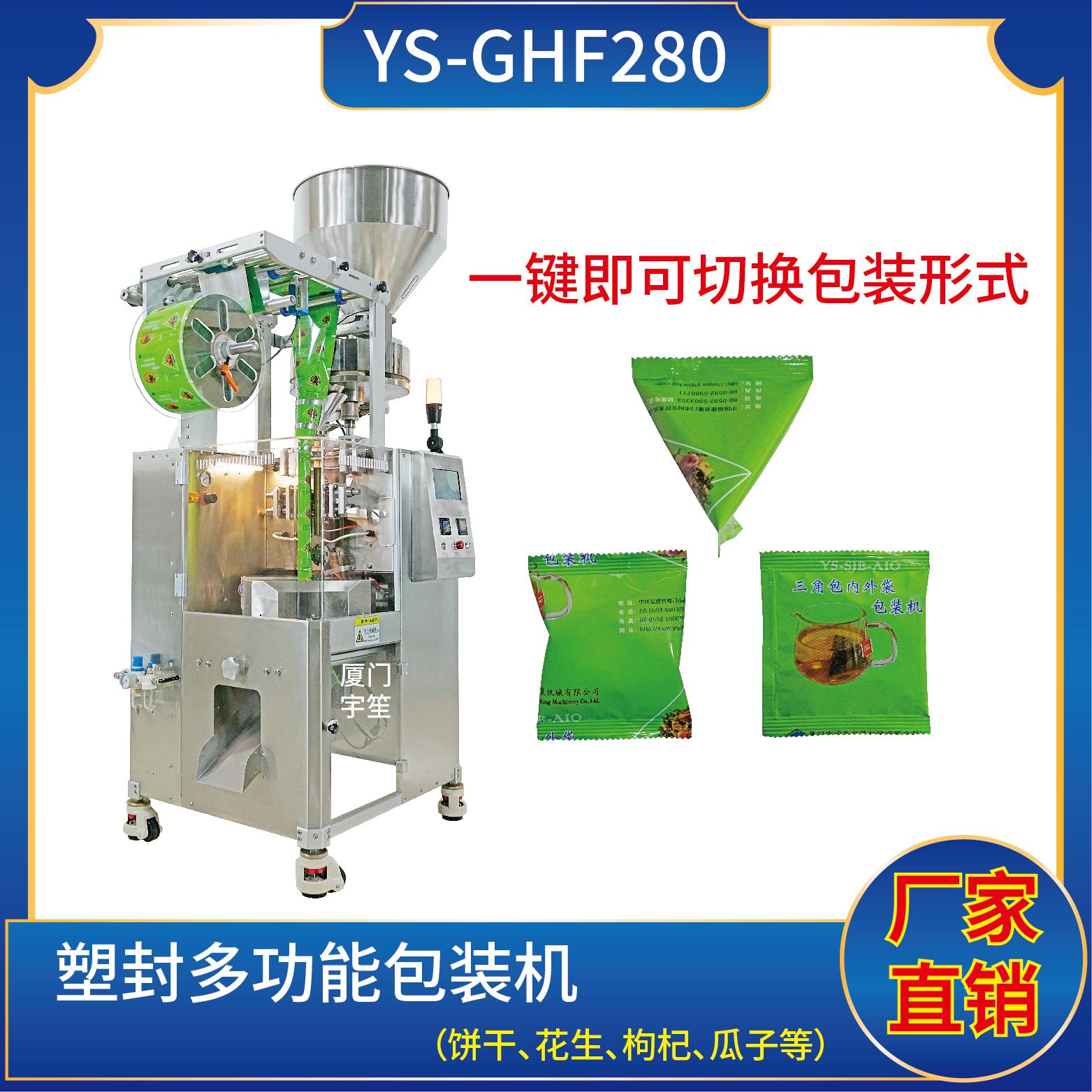

２、一機多用，一鍵切換封口形式（三邊封、背封、三角袋），可自動完成制袋、計量、下料、封合、分切、計數、且可根據客戶要求配置打印批號等功能。

This machine has multiple purposes, one key switch sealing form (three side sealing, back sealing, triangle bag),all the works of bag making,measuring,filling,sealing,cutting and counting can be done automatically,at the same time,it can also according to the demand of customers printing batch number and other functions.

３、觸摸屏操作，PLC 控制，驅動步進電機控制袋長，性能穩定、調整方便、檢測準確。智能式溫控儀，PID調節，保證將溫度的誤差范圍控制在1℃以?xún)?nèi)。

The touch screen operation, PLC control, drive stepper motor to control the bag length,stable performance,easy to adjust and accurate detection.Choose the intelligent temperature controller and PID control to ensure the error range of temperature controlled within 1 degree Centigrade.

４、包裝材料：聚丙烯/聚乙烯，鋁箔/聚乙烯，滌綸/鍍鋁/聚乙烯，尼龍/增強型聚乙烯，紙/聚乙烯等。

Packing material：BOPP/Polyethylene, Aluminium/Polyethylene, Paper/Polyethylene, 

Polyester/Aluminizer/Polyethylene, Nylon/CPP and so on.

計量范圍：1 - 100 g

Measuring Scope

袋長( L )  :  80 - 140 mm

三邊封膜寬：120-230mm

背封膜寬：120-280mm

三角袋最大膜寬：160mm

包裝速度：30 - 80 bags / min

Packing Speed

外型尺寸：810 * 630 * 1550 mm

Dimension ( L * W * H )

整機重量：220 kg

Weight

總 功 率：AC220V / 50 - 60Hz / 2.5kw

Total Power

氣    源：≥0.6Mpa

Gas source
